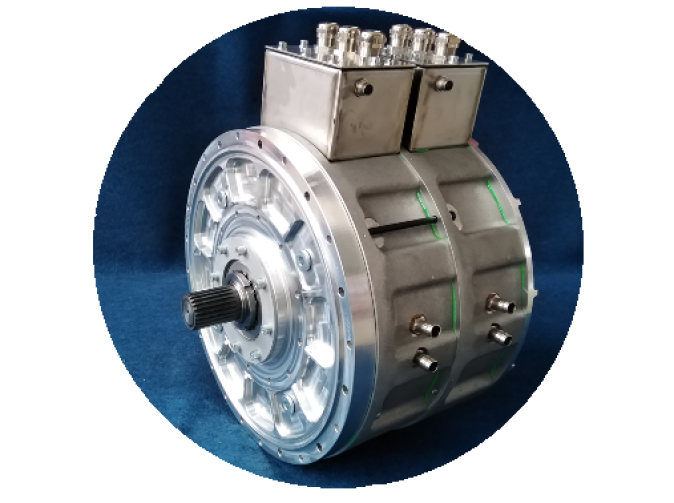

Axial flux motor Sae 3 dual stage
available with power up to 200 [kW]
Torque 550 [Nm] - 2200 [rpm]
| Rated power [kW] |
92 (46+46) |
| Nominal torque [Nm] (S1) |
550 |
| Peak torque [Nm] (S2-60s) |
860 |
| DC-Link voltage [V] |
120 |
| Rated current [A] |
852 (426+426) |
| Nominal speed [rpm] |
1600 |
| Maximum mechanical speed [rpm] |
3200 |
| Phase e.m.f. constant [mV/rpm] |
25,4 |
| Torque constant [Nm/A] |
0,6 |
| Rated frequency [Hz] |
160 |
| Number of poles |
12 |
| Motor type |
Permanent magnet synchronous, sinusoidal e.m.f. |
| Cooling |
Liquid, Tmax = 40°C - 10 l/min - Tmax = 60°C (con derating) |
| Fixing flange |
standard SAE3 |
| Length [mm] |
293 |
| Length with sensor [mm] |
371 |
| Diameter [mm] |
450 |
| Weight [kg] |
166 |
| Rated power [kW] |
56 (28+28) |
| Nominal torque [Nm] (S1) |
336 |
| Peak torque [Nm] (S2-60s) |
860 |
| DC-Link voltage [V] |
120 |
| Rated current [A] |
556 (278+278) |
| Nominal speed [rpm] |
1600 |
| Maximum mechanical speed [rpm] |
3200 |
| Phase e.m.f. constant [mV/rpm] |
25,4 |
| Torque constant [Nm/A] |
0.6 |
| Rated frequency [Hz] |
160 |
| Number of poles |
12 |
| Motor type |
Permanent magnet synchronous, sinusoidal e.m.f. |
| Cooling |
Air, with two fan for stage |
| Fixing flange |
standard SAE3 |
| Length [mm] |
293 |
| Length with sensor [mm] |
371 |
| Diameter [mm] |
450 |
| Weight [kg] |
175 |
