INDUCTION MOTORS

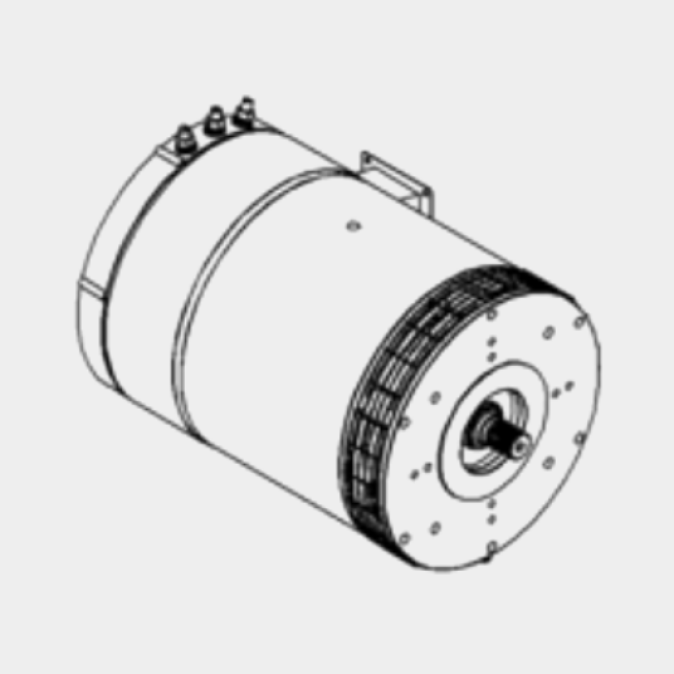

Motore asincrono D 365 [mm] - L 517 [mm]
Motore asincrono D 365 [mm] - L 517 [mm]
available with power: 32 [kW]
Voltage adjustments are possible.
Power [kW]
32
Speed [rpm]
2034
Torque [Nm]
140
Peak Torque [Nm]
400
Frequency [Hz]
70
Current [A]
450
Bus DC [V]
80
Duty cycle
S2-60'
External Diameter [mm]
365
Width[mm]
517
Mass [kg]
-
Attached files
Motors D 365 [mm] - L 517 [mm]
(24,12 KB)
