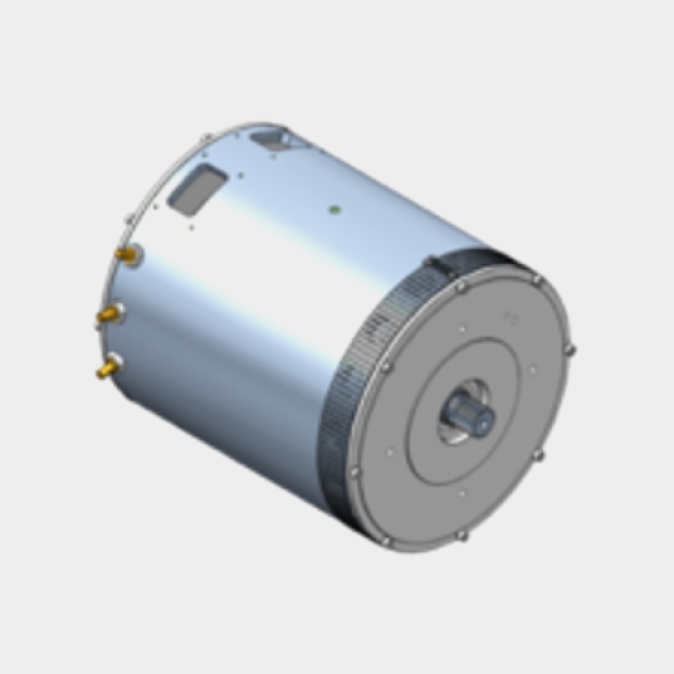

Induction motor D 402 [mm] - W 500 [mm]

available with power: 52 - 45 - 38 - 32 [kW]
Voltage adjustments are possible.

Power [kW]	52
Speed [rpm]	2950
Tourque [Nm]	180
Peak Tourque [Nm]	330
Frequency [Hz]	100
Current [A]	670
Bus DC [V]	96
Duty cycle	S3-50%
External Diameter[mm]	402
Width [mm]	500
Mass [kg]	280

Attached files

1L212502 - Potenza 52 kW (24,31 KB)

Power [kW]	45
Speed [rpm]	2525
Torque [Nm]	180
Peak Torque[Nm]	330
Frequency [Hz]	85
Current [A]	670
Bus DC [V]	80
Duty cycle	S3-50%
External Diameter [mm]	402
Width [mm]	500
Mass [kg]	280

Attached files

1L212502 - Potenza 45 kW (24,20 KB)

Power [kW]	38
Speed [rpm]	2070
Tourque [Nm]	180
Peak Torque [Nm]	450
Frequency [Hz]	70
Current [A]	450
Bus DC [V]	96
Duty cycle	S2-60'
External Diameter [mm]	402
Width [mm]	500
Mass[kg]	280

Attached files

1L212501 - Potenza 38 kW (24,17 KB)

Power [kW]	32
Speed [rpm]	1770
Torque [Nm]	180
Peak Torque[Nm]	450
Frequency [Hz]	60
Current [A]	450
Bus DC [V]	80
Duty cycle	S2-60'
External Diameter [mm]	402
Width [mm]	500
Mass [kg]	280

Attached files

1L212501 - Potenza 32 kW (24,08 KB)
