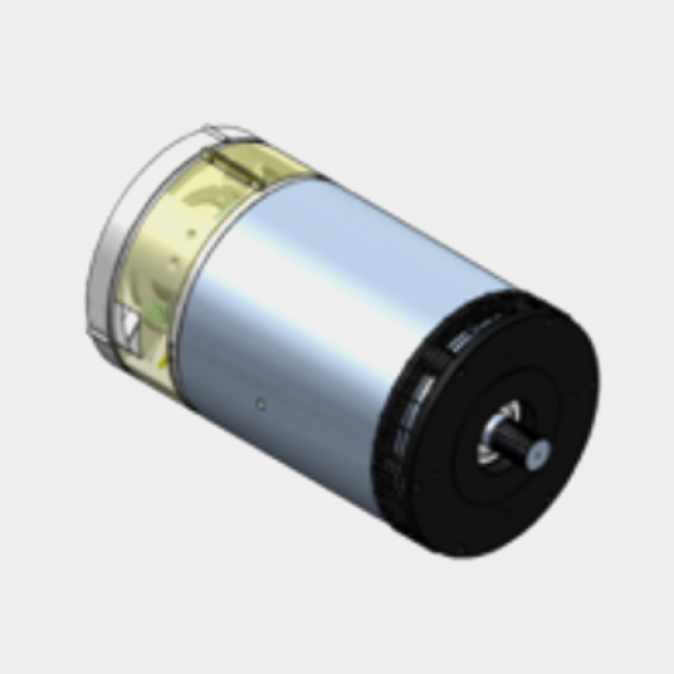

Induction motor D 365 [mm] - L 625 [mm]

available with power: 55 - 45 [kW]

Power [kW] 45
Speed [rpm] 2750
Torque  [Nm] 156
Peak Torque [Nm] 310
Frequency [Hz] 94
Current [A] 440
Bus DC [V] 120
Duty cycle S2-60'
External Diameter [mm] 365
Width [mm] 625
Mass [kg] -
Attached files
Power  [kW] 55
Speed [rpm] 2750
Torque [Nm] 183
Peak Torque  [Nm] 310
Frequency  [Hz] 94
Current[A] 600
Bus DC [V] 120
Duty cycle S3-50%
External Diameter [mm] 365
Width [mm] 625
Mass [kg] -
Attached files
