  3. Induction motor D 321 [mm] - L 517 [mm]

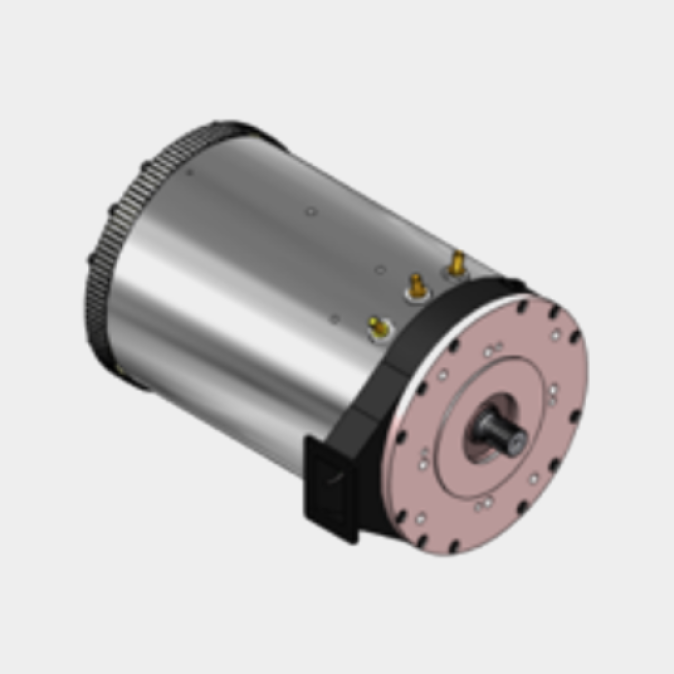

Induction motor D 321 [mm] - L 517 [mm]

available with power: 32 - 30 - 20 - 18 [kW]

Power [kW] 18
Speed [rpm] 1720
Torque [Nm] 100
Peak Torque [Nm] 450
Frequency [Hz] 60
Current  [A] 250
Bus DC[V] 80
Duty cycle S2-60'
External Diameter [mm] 321
Width [mm] 517
Mass [kg] 185
Attached files
Power[kW] 20
Speed [rpm] 1738
Torques  [Nm] 130
Peak Torque [Nm] 400
Frequency  [Hz] 60
Current [A] 286
Bus DC[V] 80
Duty cycle S2-60'
External Diameter [mm] 321
Width [mm] 517
Mass [kg] 185
Attached files
Power [kW] 30
Speed [rpm] 2950
Torque [Nm] 130
Peak torque [Nm] 300
Frequency [Hz] 110
Current  [A] 450
Bus DC  [V] 80
Duty cycle S2-60'
External Diameter [mm] 321
Width [mm] 517
Mass [kg] 185
Attached files
Power [kW] 32
Speed [rpm] 2333
Torque [Nm] 130
Peak torque [Nm] 300
Frequency [Hz] 80
Current [A] 450
Bus DC  [V] 80
Duty cycle S2-60'
External Diameter [mm] 321
Width  [mm] 517
Mass  [kg] 185
Attached files
Power [kW] 18
Speed  [rpm] 1720
Torque [Nm] 100
Peak Torque [Nm] 450
Frequency [Hz] 60
Current [A] 250
Bus DC [V] 80
Duty cycle S2-60'
External Diameter [mm] 321
Width  [mm] 517
Mass [kg] 185
Attached files
