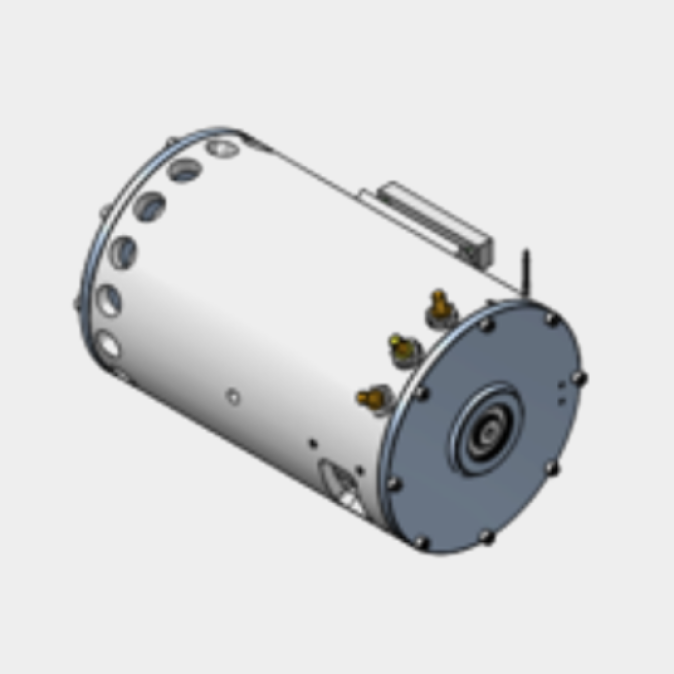

Induction motor D 276 [mm] - W 500 [mm]

available with power: 30 - 14 [kW]

Power  [kW] 14
Speed [rpm] 1750
Torque [Nm] 75
Peak torque [Nm] 280
Frequency [Hz] 70
Current [A] 200
Bus DC [V] 80
Duty cycle S2-60'
External Diameter [mm] 276
Width [mm] 500
Mass [kg] 135
Attached files
Power [kW] 30
Speed [rpm] 2620
Torque [Nm] 108
Peak Torque [Nm] 210
Frequency [Hz] 90
Current [A] 475
Bus DC [V] 80
Duty cycle S3-25%
External Diameter [mm] 276
Width  [mm] 500
Mass [kg] 135
Attached files
