INDUCTION MOTORS

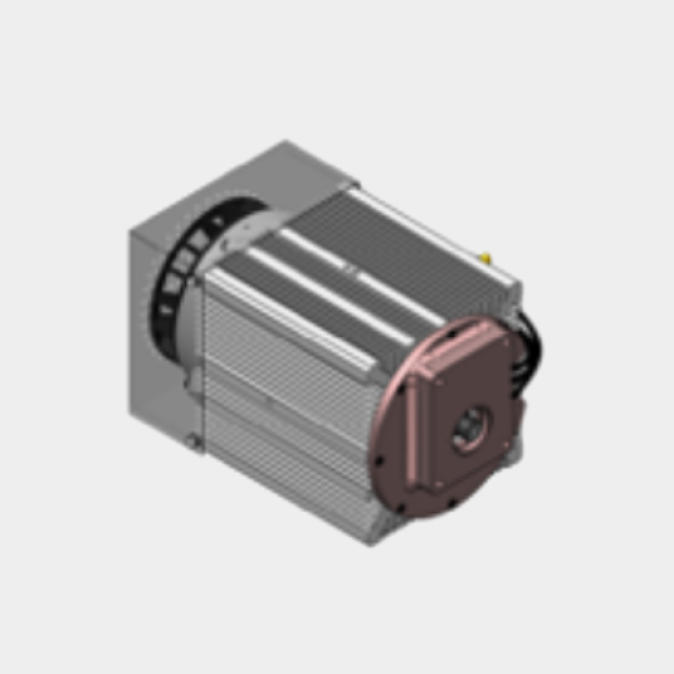

Induction motor D 228 [mm] - L 357 [mm]
Induction motor D 228 [mm] - L 357 [mm]
available with power: 18 [kW]
Voltage adjustments are possible.
Power [kW]
18
Speed [rpm]
1970
Torque [Nm]
87
Peak torque [Nm]
117
Frequency [Hz]
70
Current [A]
310
Bus DC [V]
80
Duty cycle
S3-15%
External Diameter [mm]
228
Width [mm]
53
Mass [kg]
77
Attached files
1L121401 - Power 18 kW
(24,19 KB)
