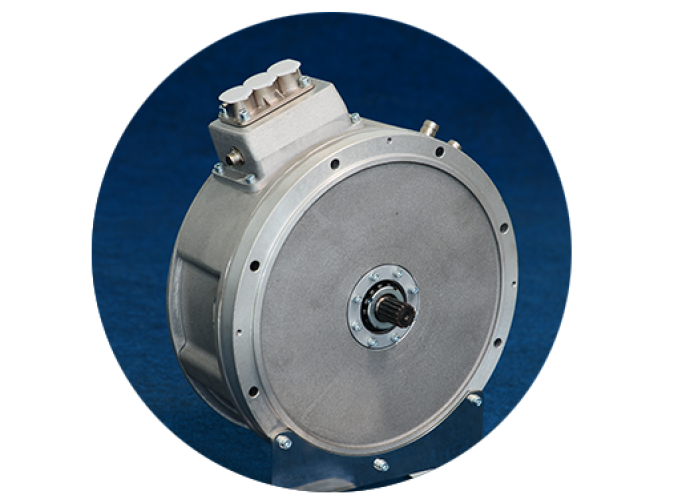

Axial flux motor Sae 5
available with power up to 25 [kW]
Torque 80 [Nm] - 3000 [rpm]
| Rated power [kW] |
25 |
| Nominal torque [Nm] (S1) |
80 |
| Peak torque [Nm] (S2-60s) |
160 |
| DC-Link voltage [V] |
700 |
| Rated current [A] |
45 |
| Nominal speed [rpm] |
3000 |
| Maximum mechanical speed [rpm] |
4000 |
| Phase e.m.f. constant [mV/rpm] |
67 |
| Torque constant [Nm/A] |
1,78 |
| Rated frequency [Hz] |
250 |
| Number of poles |
10 |
| Motors type |
Permanent magnet synchronous, sinusoidal e.m.f. |
| Cooling |
Liquid, Tmax = 40°C - 10 l/min - Tmax = 60°C (con derating) |
| Fixing flange |
standard SAE5 |
| Disc-disc length [mm] |
96 |
| Length with sensor [mm] |
206 |
| Diameter [mm] |
356 |
| Weight [kg] |
40 |
| Rated power [kW] |
25 |
| Nominal torque [Nm] (S1) |
80 |
| Peak torque [Nm] (S2-60s) |
160 |
| DC-Link voltage [V] |
350 |
| Rated current [A] |
90 |
| Nominal speed [rpm] |
3000 |
| Maximum mechanical speed [rpm] |
4000 |
| Phase e.m.f. constant [mV/rpm] |
33 |
| Torque constant [Nm/A] |
0,89 |
| Rated frequency [Hz] |
250 |
| Number of poles |
10 |
| Motor type |
Permanent magnet synchronous, sinusoidal e.m.f. |
| Cooling |
Liquid, Tmax = 40°C - 10 l/min - Tmax = 60°C (con derating) |
| Fixing flange |
SAE5 |
| Disc-disc length [mm] |
96 |
| Length with sensor [mm] |
206 |
| Diameter [mm] |
356 |
| Weight [kg] |
40 |
