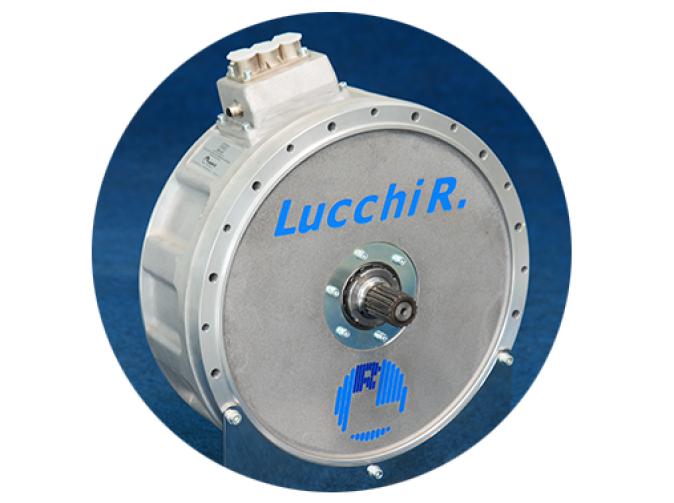

Axial flux motor Sae 3

Rated power [kW]	65
Nominal torque [Nm] (S1)	280
Peak torque [Nm] (S2-60s)	500
DC-Link voltage [V]	700
Rated current [A]	100
Nominal speed [rpm]	2200
Maximum mechanical speed [rpm]	4000
Phase e.m.f. constant [mV/rpm]	100
Torque constant [Nm/A]	2,8
Rated frequency [Hz]	220
Number of poles	12
Motor type	Permanent magnet synchronous, sinusoidal e.m.f.
Cooling	Liquid, Tmax = 40°C - 10 l/min - Tmax = 60°C (con derating)
Fixing flange	standard SAE3
Length [mm]	172
Length with sensor [mm]	224
Diameter [mm]	450
Weight [kg]	83

Rated power [kW]	13
Nominal torque [Nm] (S1)	2900
Peak torque [Nm] (S2-60s)	43
DC-Link voltage [V]	350
Rated current [A]	70
Nominal speed [rpm]	400
Maximum mechanical speed [rpm]	80
Phase e.m.f. constant [mV/rpm]	S2-60'
Torque constant [Nm/A]	228
Rated frequency [Hz]	475
Number of poles	77
Motor type	Permanent magnet synchronous, sinusoidal e.m.f.
Cooling	Liquid, Tmax = 40°C - 10 l/min - Tmax = 60°C (con derating)
Fixing flange	standard SAE3
Length [mm]	172
Length with sensor [mm]	224
Diameter [mm]	450
Weight [kg]	83

Rated power [kW]	46
Nominal torque [Nm] (S1)	275
Peak torque [Nm] (S2-60s)	430
DC-Link voltage [V]	120
Rated current [A]	426
Nominal speed [rpm]	1600
Maximum mechanical speed [rpm]	4000
Phase e.m.f. constant [mV/rpm]	25,4
Torque constant [Nm/A]	0,645
Rated frequency [Hz]	160
Number of poles	12
Motor type	Permanent magnet synchronous, sinusoidal e.m.f.
Cooling	Liquid, Tmax = 40°C - 10 l/min - Tmax = 60°C (con derating)
Fixing flange	standard SAE3
Length [mm]	172
Length with sensor [mm]	224
Diameter [mm]	450
Weight [kg]	87
